0.9S Easy Automatically Operating Cable Tie Gun For Rapid Bundle Silicone Hose Of Soap Dispenser
Automatic cable tie gun machine SWT25080M is with a foot pedal. Once operator treads the pedal, the cable tie gun would automatically bundle, tighten and cut off. And the waste material after cutting would be collected into a box.
The bundle speed is 0.9S. One automatic cable tie machine can replace two workers at least.

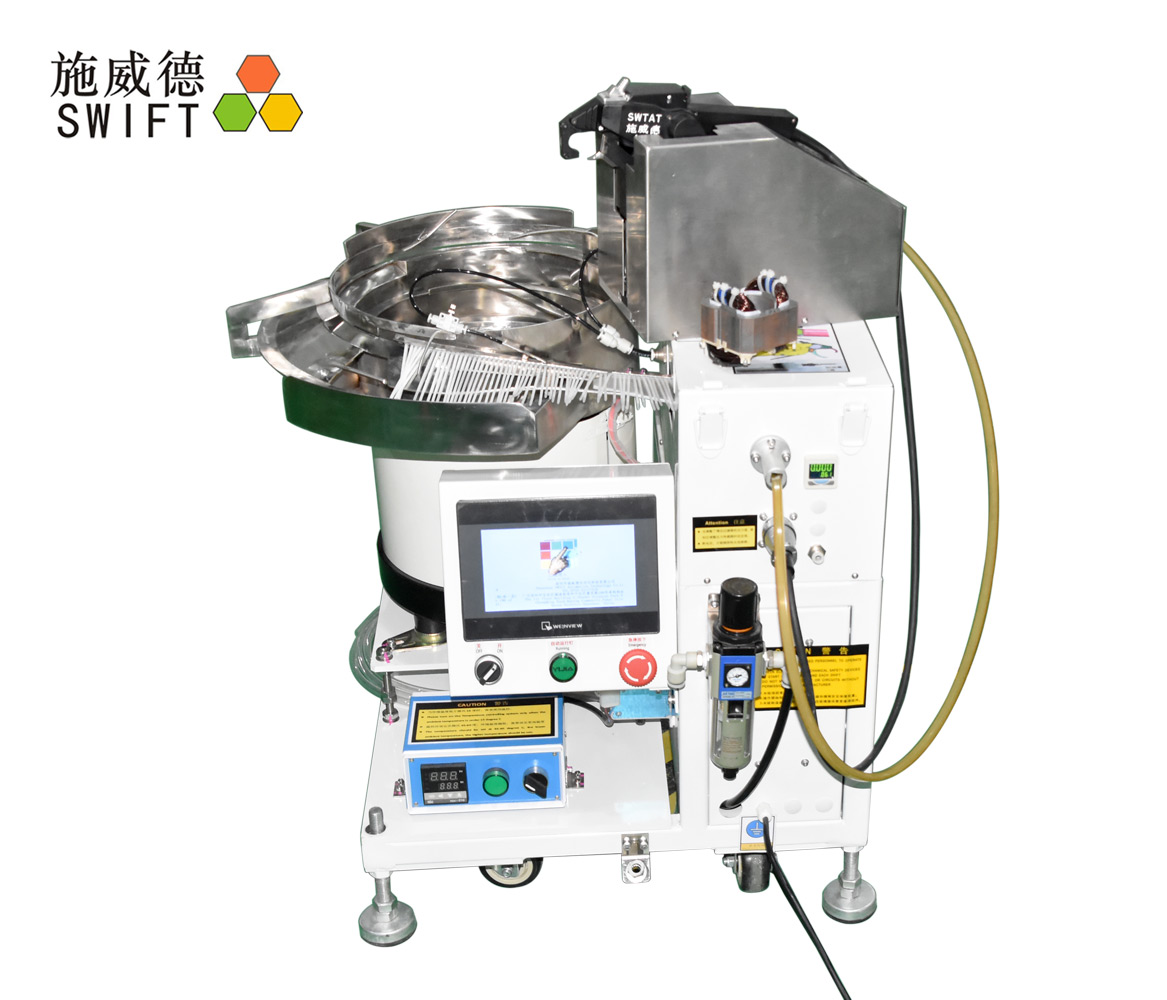

Automatic cable tie gun machine SWT25080M
| Features | 0.9S finishing bundling, tightening and cutting The most effective and stable automatic cable tie gun solution. The bundled objects’ diameters: ø5mm – ø10mm Using nylon cable ties: W2.5 * L80mm Fully alloy steel structure body. PLC control system and touch screen. With wheels. |  |
| Technical data | Nylon cable ties size: W2.5 * L80mm Bundle speed: 0.9S Bundle diameters: 5mm - 10mm Cable tie gun weight: 6kg Machine weight: 145kg Machine voltage: AC220V, 50/60Hz Cable tie gun voltage: DC24V, switch Pneumatic pressure: 5kg/cm² |
| Shipping info | Delivery time: 12-15days Pack size: host machine/wooden case, 72 *70*80mm, G.W./N.W.: 110kg/85kg; Vibration bowl/wooden case, 60*53*70mm, G.W./N.W.: 70kg/54kg; |
Advantages
1. Fast - It takes 0.9Second to finish bundling single cable tie. It is about 3times as long as by-hand bundled.
2. Stable - It can be used in production lines. It can meet the production speed.
3. Good material - The machine structure is A3 alloy steel, so is cable tie gun. The working life is about 4 or 5 years.
4. Reduce labor intensity.
Package list
| Item | Qty |
| Vibration bowl | *1 |
| Host machine | *1 |
| Fixe cable tie gun(M) | *1 |
| Feeding tube | *1 |
| A plastic box | *1 |
| An air tube | *1 |
| English manual | *1 |
| Small tool case | *1 |
| Foot pedal | *1 |
Other cable tie guns
| Model | SWT25080H | SWT25080F |
| Cable tie sizes | W2.5*L80mm | W2.5 * L80mm |
| Min bundle diameter | 2mm | 2mm |
| Max bundle diameter for wire | 14mm | 14mm |
| Max bundle diameter for tube | 13mm | 13mm |
| Cable tie gun type | handheld cable tie gun | Fixed cable tie gun |
| Voltage | AC220V, 50/60Hz | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 | 5kg/cm2 |
FAQ
1. What triggers the activation? Is it a button, a pedal, automatic?
It is a foot pedal. Once worker pedals the pedal, cable ties would be bundled, tightened and cut off.
2. Does the machine produce nylon cable ties?
No, it doesn’t. It is a tool that can automatically bundle nylon cable ties and help you save time.
3. Does the machine use different sizes nylon cable ties?
No, it doesn’t. One machine can deal with a kind of nylon cable ties.
4. Where are the waste cable ties after cut?
They would be collected into a box.
