Small Fast Wrap Automatic Cable Tie Gun For Damping Slippers Of Washing Machine

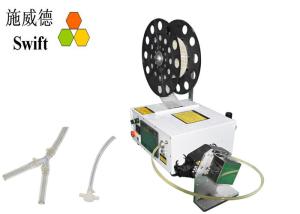

Fixed cable tie gun SWT25100FC : hands free, automatic bundle cable ties in 1.1S.
Features
1. Once tread the foot pedal, it would start to wrap, tighten and cut off nylon cable ties.
2. You could let the cable tie gun fixed in the bench/worktop, operator could hold things with hands, then tread the pedal.
3. The binding forces are adjusted by turning a knob.
4. If there is any cable tie jammed in the tool, the machine would stop running and automatically clean the jammed cable tie, then restart.
5. The machine uses reel cable ties, C25100.That cable ties are on chain, cable ties length 100mm, width 2.5mm.
6. Without vibration feeding, the machine is smaller and the noise is lower.
SWT25100FC Automatic cable tie gun specifications
| Name | Automatic cable tie gun |
| Model | SWT25100FC |
| Cable ties material | Nylon 66 |
| Cable ties size | W2.5 * L100mm |
| Min bundle dia. | 2mm |
| Max bundle dia. for wire/tube | 18mm/16mm |
| Operation speed | 1.1S |
| Host size/weight | L710 * W470 * H230mm, 30kg |
| Gun size | L278 * H240 * T149 |
| Gun weight | 4.0kg |
| Pneumatic pressure | 5kg/cm2 |
| Electric power | AC220, 50/60Hz |
FAQ
1. How does a cable tie gun work?
Cable tie guns are often used when cable ties are processed in large quantities.
The aim is to make it easier to tie large quantities of cable ties quickly and cut off the excess strap flush to the tie head.
It is useful to save time and cost. One machine saves at least one worker.
2. Is it reliable?
So far, we have served more than 300 clients. They are from Turkey, Poland, UK and Spain etc and are sastified with our machines. We are the professional manufacturer of automatic cable tie tools and offer you the best machines.
